High-throughput Focused-ultrasonicator

High-throughput Focused-ultrasonicator

Overview
Specifications
Application

High-throughput Focused-ultrasonicators Overview

EoSonics® FRAG96 High-throughput Focused-ultrasonicator adopts Adaptive Cylindrical Ultrasonic (ACU ) technology to shearing of DNA, RNA, chromatin, and protein. It can achieve appropriate size by different sonication conditions. Based on its excellent performance, it can produce relatively narrow and consistent chromatin shearing profiles (200-600bp) compared with enzyme cutting method, which can be a better choice for sample fragmentation treatment.


EoSonics® FRAG96 can flexibly process 1 to 96 samples at one time. Different specifications of consumables such as 96-well plates, eight-row tubes, and single tubes can be used to fit 1 to 96 samples. Since PCR plates/tubes can be used for processing, the cost of consumables is very low. There is no need to manually change samples to special consumables during use, it can transfer samples from board to board for automation.


The product has obtained CB and CE certifications.

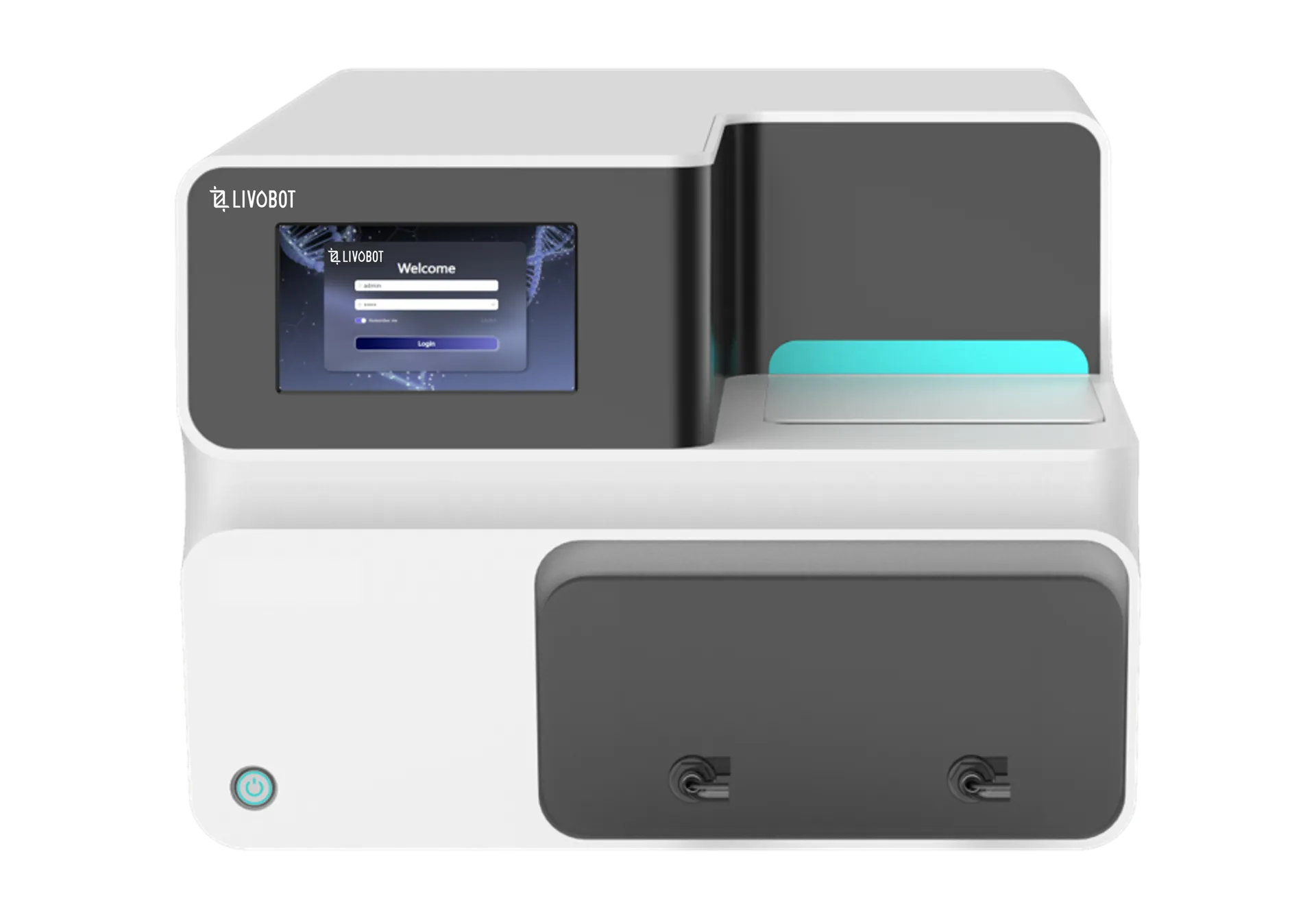

WGS Platform

EoSonics® FRAG96 Technical Specifications

Throughput1~96
Fragment sizes100bp~5Kb
Flexible sample processing volume15~150μl. The system can be extended to the milliliter level.
TechnologyACU (Adaptive Cylindrical Ultrasonic)
Supported consumablesPCR plates, PCR tubes and professional consumables
AutomatableOptional
Man-machine interaction modeTouch screen
Dimensions (W×D×H)560mm×660mm×382mm
Weight50Kg
Power Requirements220V/50Hz ; 110V/60Hz
Operating EnvironmentAmbient temperature: 10℃ to 30℃ (50 ℉ to 86 ℉) Relative humidity: 20% to 80%; 80~106kPa
Intelligent monitoringYes


High-throughput Focused-ultrasonicators Prodcut Application

Compatible applications

  • Shearing DNA/RNA for NGS.

  • Shearing chromatin for ChIP-Seq.

  • Process cells or tissue samples for nucleic acid extraction.

  • Process cells or tissue samples for protein extraction.

High-throughput Focused-ultrasonicators Prodcut Application
Fragmented FFPE Samples
96-Well PCR Plate
