Mid-throughput Focused-ultrasonicators Overview

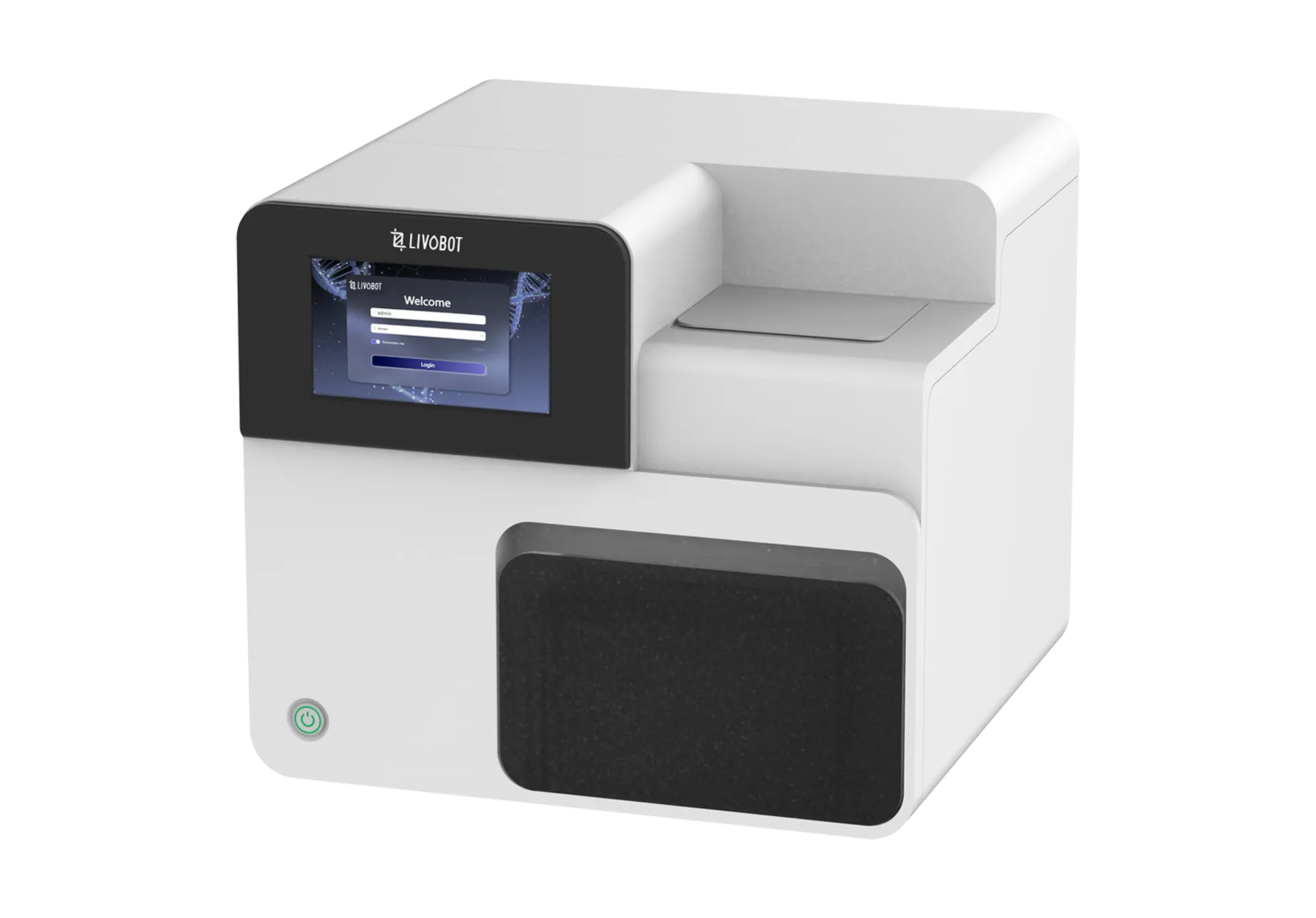

The EoSonics® FRAG8 Focused-ultrasonicator utilizes Adaptive Cylindrical Ultrasonic (ACU™) technology for the shearing of DNA, RNA, and chromatin. It can process 1 to 8 samples per batch flexibly and allows users to generate fragments of a desired size range by adjusting sonication parameters. Leveraging its high-performance design, it produces relatively narrow and consistent chromatin shearing profiles compared with enzymatic fragmentation methods, making it an excellent choice for sample fragmentation applications.

Sequencing Technology Platforms

EoSonics® FRAG8 Technical Specifications

TechnologyACU™(Adaptive cylindricalultrasonic)
Dimensions (W×D×H)438 mm × 417 mm × 385 mm
Weight25KG
Throughput1-8
Fragment Size Range100bp-5Kb
Processing Volume15–150 μL (extendable to milliliter level)
Processing ModeBatch processing by single row
Consumables8- strip tubes / single tubes / specialized consumables
User InterfaceHigh- sensitivity touch screen
Power SupplyAC220V
Input Power400VA


EoSonics® FRAG8 Product Features

  • Flexible Throughput: Processes 1–8 samples per run with flexible configuration.

  • High Efficiency: Unique single-row processing mode enables simultaneous processing of 8 samples.

  • Open Consumables: Compatible with standard 8-strip tubes, allowing direct loading without plate transfer.

  • Specialized Consumables: Eliminates pre-centrifugation steps; shearing time ≤ 6 minutes.

  • Non-Contact Processing: Independent closed reaction system prevents cross-contamination between samples.

EoSonics® FRAG8 Prodcut Application

Compatible applications

Shearing DNA/RNA for NGS.

Shearing chromatin for ChIP-Seq.

Process cells or tissue samples for nucleic acid extraction.

Process cells or tissue samples for protein extraction.

EoSonics® FRAG8 Prodcut Application

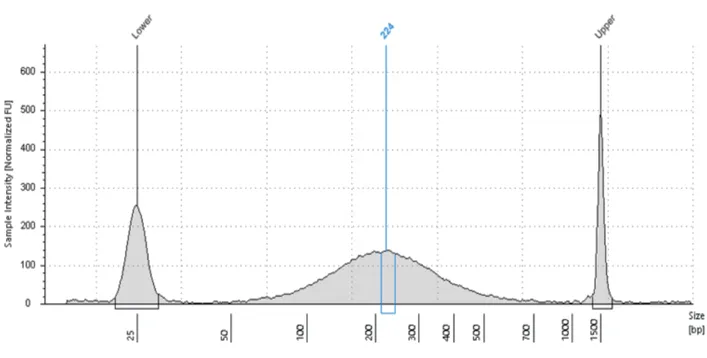

Fragmentation Effect
TSO Targeted Panel Library
